Cryptanalysis of the Vigenere Cipher
For a recap of how the Vigenere Cipher works, see here
The Vigenere cipher was though to be completely unbreakable for hundreds of years, and indeed, if very long keys are used the vigenere cipher can be unbreakable. But if short keys are used, or if we have a lot of ciphertext compared to the key length, the vigenere cipher is quite solvable.
Cryptanalysis of the Vigenere cipher has 2 main steps: identify the period of the cipher (the length of the key), then find the specific key. To identify the period we use a test based on the Index of Coincidence, to find the specific key we use the Chi-squared statistic. For the purposes of this explanation, we will try to break the following message:
vptnvffuntshtarptymjwzirappljmhhqvsubwlzzygvtyitarptyiougxiuydtgzhhvvmum shwkzgstfmekvmpkswdgbilvjljmglmjfqwioiivknulvvfemioiemojtywdsajtwmtcgluy sdsumfbieugmvalvxkjduetukatymvkqzhvqvgvptytjwwldyeevquhlulwpkt
The first thing to note is that there is no guarantee that the period of key that we find is the actual key used. If the message is very long we can be almost certain of being correct, but the methods provided here are approximate.
Finding the Period §
The Vigenere cipher applies different Caesar ciphers to consecutive letters. If the key is 'PUB', the first letter is enciphered with a Caesar cipher with key 16 (P is the 16th letter of the alphabet), the second letter with another, and the third letter with another. When we get to the 4th letter, it is enciphered using the same cipher as letter 1. As a result, if we gather letters 1,4,7,10,... we should get a sequence of characters, all of which were enciphered using the same Caesar cipher. The sequence of characters 2,5,8,11,... and 3,6,9,12,... will also be enciphered with their own Caesar cipher. The exact sequence will of course depend on the period of the cipher i.e. the key length.
The Index of Coincidence (I.C.) is a statistical technique that gives an indication of how English-like a piece of text is. One of the useful properties of the technique is that the result of the I.C. does not change if you apply a substitution cipher to the text. This is because the I.C. is based on letter frequencies, and simple substitution ciphers do not modify the individual letter frequencies. If text is similar to english it will have an I.C. of around 0.06, if the characters are uniformly distributed the I.C. is closer to 0.03-0.04.
To determine the period of a Vigenere cipher we first assume the key length is 2. We extract the two sequences 1,3,5,7,... and 2,4,6,8,... from the ciphertext. For the example we are working with we get the following result (note that the I.C. is calculated using the whole sequences, not just the part shown)
I.C.
original: vptnvffuntshtarptymjwzirappljmhhqvsubw... 0.049
if key were length 2:
sequence 1: v t v f n s t r t m w i a p j h q s b ... 0.049
sequence 2: p n f u t h a p y j z r p l m h v u w... 0.046
average: 0.048
if key were length 3:
sequence 1: v n f t t p m z a l h v b ... 0.049
sequence 2: p v u s a t j i p j h s w... 0.046
sequence 3: t f n h r y w r p m q u ... 0.046
average: 0.047

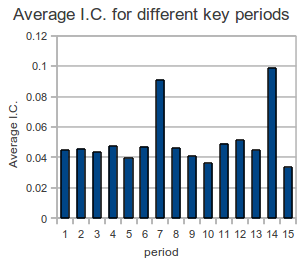

This procedure of breaking up the ciphertext and calculating the I.C. for each subsequence is repeated for all the key lengths we wish to test. What we are most interested in is the average I.C. for a particular period, for the case of period = 2, the average I.C. is around 0.048. If you were to continue this procedure up to a period of 15 we get the following average I.C. values:
period avg I.C. ----------------------- 1 : 0.0449443523561 2 : 0.0457833618884 3 : 0.0435885364312 4 : 0.0474962292609 5 : 0.0393612078978 6 : 0.0471437059672 7 : 0.0909922589726 8 : 0.0461858974359 9 : 0.0407804755631 10: 0.0361152882206 11: 0.0491603339901 12: 0.0512663398693 13: 0.0446886446886 14: 0.0988487702773 15: 0.0334554334554 |
|
We have 2 rows that have very high values of average I.C. This indicates the key is probably of length 7, but could also be of length 14. Both of these probabilities should be tested.
Finding the Key §
Since we now know the period is 7, we only have 7 Caesar ciphers to break, which is fairly easy. For this task we will use the Chi-squared statistic, which will compare the frequency distribution of our subsequences to the expected English frequency distribution.
Using every seventh letter starting with the first, our first sequence is 'VURZJUGRGGUGVGJQKEOAGUGKKQVWQP'. This is text all enciphered with the same Caesar cipher, we want to know what the key is. The procedure for this is described fully in the page on the Chi-squared statistic. In essence, we try deciphering this sequence with each of the 25 possible Caesar ciphers, and compare the frequency distribution of the deciphered text with the frequency distribution of English for each key. If we perform this, we get 26 values for the Chi-squared statistic. The correct key will correspond to the deciphered text with the lowest Chi-squared statistic (we hope, due to the statistical nature of the problem it may be the second or third lowest value). We show the results of this procedure here:
key deciphered sequence chi-sq
------------------------------------------------
0 VURZJUGRGGUGVGJQKEOAGUGKKQVWQP 595.42
1 UTQYITFQFFTFUFIPJDNZFTFJJPUVPO 466.86
2 TSPXHSEPEESETEHOICMYESEIIOTUON 41.22
3 SROWGRDODDRDSDGNHBLXDRDHHNSTNM 67.73
4 RQNVFQCNCCQCRCFMGAKWCQCGGMRSML 642.37
5 QPMUEPBMBBPBQBELFZJVBPBFFLQRLK 451.49
6 POLTDOALAAOAPADKEYIUAOAEEKPQKJ 121.97
7 ONKSCNZKZZNZOZCJDXHTZNZDDJOPJI 2441.20
8 NMJRBMYJYYMYNYBICWGSYMYCCINOIH 190.46
9 MLIQALXIXXLXMXAHBVFRXLXBBHMNHG 1142.90
10 LKHPZKWHWWKWLWZGAUEQWKWAAGLMGF 358.87
11 KJGOYJVGVVJVKVYFZTDPVJVZZFKLFE 962.13
12 JIFNXIUFUUIUJUXEYSCOUIUYYEJKED 354.18
13 IHEMWHTETTHTITWDXRBNTHTXXDIJDC 241.97
14 HGDLVGSDSSGSHSVCWQAMSGSWWCHICB 107.36
15 GFCKUFRCRRFRGRUBVPZLRFRVVBGHBA 136.40
16 FEBJTEQBQQEQFQTAUOYKQEQUUAFGAZ 1801.65
17 EDAISDPAPPDPEPSZTNXJPDPTTZEFZY 531.22
18 DCZHRCOZOOCODORYSMWIOCOSSYDEYX 247.66
19 CBYGQBNYNNBNCNQXRLVHNBNRRXCDXW 377.60
20 BAXFPAMXMMAMBMPWQKUGMAMQQWBCWV 489.12
21 AZWEOZLWLLZLALOVPJTFLZLPPVABVU 815.45
22 ZYVDNYKVKKYKZKNUOISEKYKOOUZAUT 648.33
23 YXUCMXJUJJXJYJMTNHRDJXJNNTYZTS 1476.11
24 XWTBLWITIIWIXILSMGQCIWIMMSXYSR 279.93
25 WVSAKVHSHHVHWHKRLFPBHVHLLRWXRQ 158.53
This means our first Vigenere key letter is 'C' (A=0,B=1,C=2,...). We have to repeat this procedure for each of the 7 key letters. If we continue this procedure of finding the keys corresponding to the Chi-squared minima, we get the sequence 2,8,0,7,4,17,18. This spells out 'CIAHERS', which is wrong. This goes to show you can't rely on the technique fully unless very long ciphertexts are available. The correct key was 'CIPHERS', and indeed the Chi-square test had two very low values for that subsequence. Unfortunately the incorrect one was slightly lower.
Wrapping up §
As shown above, statistical techniques can give you wrong answers. To get around this you may have to try decrypting the ciphertext with each of several likely candidates to find the true key.
For a more reliable approach, and one which is conceptually a bit simpler, see Cryptanalysis of the Vigenere Cipher, Part 2.
